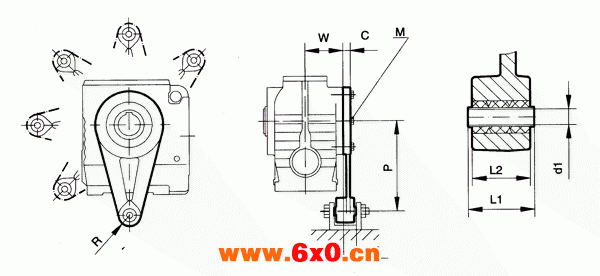

MNAT系列圆柱蜗杆减速机的安装尺寸
型号 | C | d1 | l | L1 | L2 | M | P | R | W |
MNAT37 | 10 | 10.4±0.1 | 26 | 36 | 31 | M6×16－8.8 | 110 | 21 | 57 |
MNAT47 | 15 | 10.4±0.1 | 20.5 | 36 | 31 | M8×25－8.8 | 130 | 21 | 57.5 |
MNAT57 | 15 | 10.4±0.1 | 18.5 | 36 | 31 | M8×25－8.8 | 160 | 21 | 72 |
MNAT67 | 18 | 10.4±0.1 | 19.5 | 36 | 31 | M12×35－8.8 | 200 | 21 | 80.5 |
MNAT77 | 18 | 16.4±0.08 | 32.5 | 60 | 54 | M12×35－8.8 | 250 | 30 | 101 |
MNAT87 | 24 | 16.4±0.08 | 25.5 | 60 | 54 | M16×45－8.8 | 310 | 30 | 120 |
MNAT97 | 26 | 25±0.08 | 33 | 80 | 72 | M16×60－8.8 | 380 | 40 | 140 |
