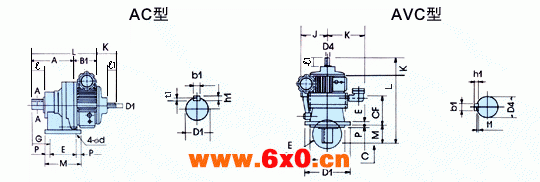

配置可乐利减速机(CORONET)(双轴型)
型 式 | L | K | 高 速 轴 | ||||
D1 | l1 | b1 | h1 | t1 | |||
02AC-A195 02AVC-A195 | 306 | 77 | 14 | 25 | 5 | 5 | 3 |
05AC-A195 05AVC-A195 | 320 | 80 | 14 | 30 | 5 | 5 | 3 |
05AC-B105 05AVC-B105 | 334 | 80 | 14 | 30 | 5 | 5 | 3 |
1AC-B105 1AVC-B105 | 378 | 110 | 19 | 40 | 6 | 6 | 3.5 |
1AC-C115 1AVC-C115 | 408 | 110 | 19 | 40 | 6 | 6 | 3.5 |
2AC-C115 2AVC-C115 | 447 | 126 | 24 | 50 | 8 | 7 | 4 |
2AC-D135 2AVC-D135 | 501 | 157 | 24 | 50 | 8 | 7 | 4 |
3AC-D135 3AVC-D135 | 576 | 157 | 28 | 60 | 8 | 7 | 4 |
3AC-E165 3AVC-E165 | 624 | 157 | 28 | 60 | 8 | 7 | 4 |
5AC-D135 5AVC-D135 | 556 | 157 | 28 | 60 | 8 | 7 | 4 |
5AC-E165 5AVC-E165 | 624 | 157 | 28 | 60 | 8 | 7 | 4 |
5AC-E375 5AVC-E375 | 668 | 157 | 28 | 60 | 8 | 7 | 4 |
